VBOX Video HD1

- Please allow approximately 1-2 weeks for dispatch -

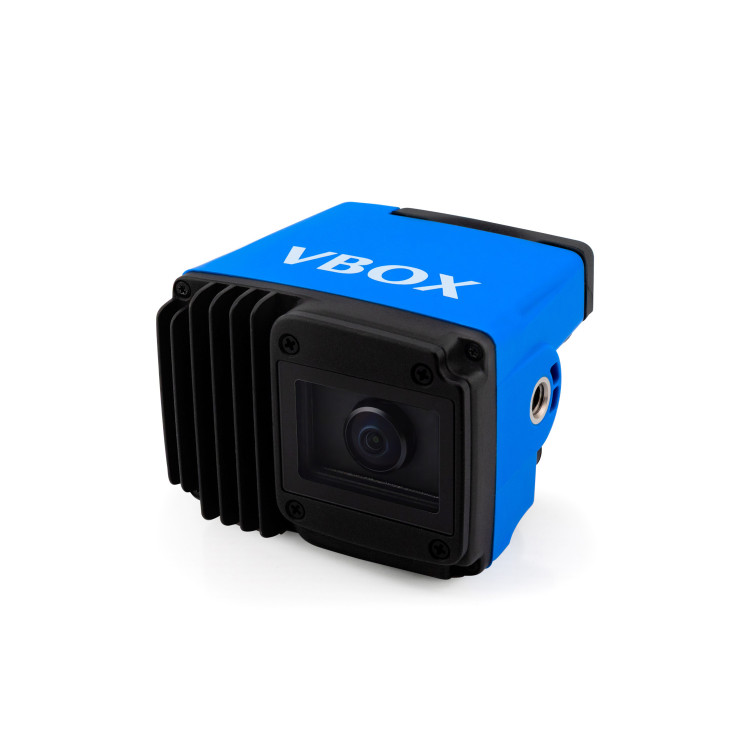

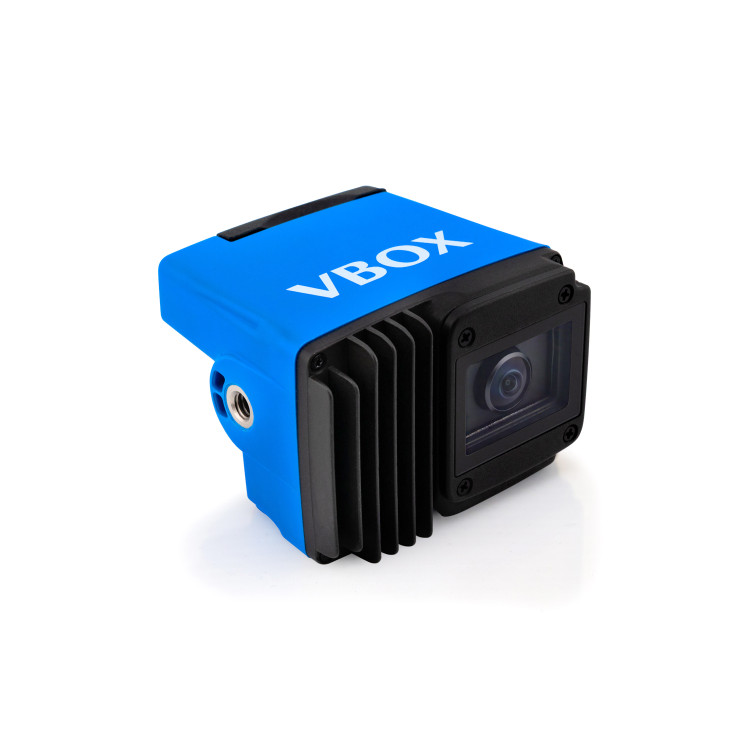

VBOX Video HD1 is the accessible video data logging system designed for drivers looking to improve lap times and build real consistency behind the wheel. This compact, plug-and-play camera and data logger is ideal for track day enthusiasts and competitive racers alike, offering a range of high-tech features in a unit the size of an action camera.

• 1080p HD Video: A single wide-angle camera with three selectable fields of view — Narrow, Normal and Wide — captures every moment of track action in sharp detail. H.265 (HEVC) encoding with dynamic bit rate keeps file sizes efficient without sacrificing quality, recording directly to an SD card.

• CAN Data Logging: HD1 logs CAN messages across two isolated CAN buses, supporting both CAN 2.0 and CAN FD, so it's compatible with a wide range of dashes and ECUs — capture throttle angle, RPM, brake pressure and more.

• HDMI Output: Stream real-time video, audio and overlay graphics to any HDMI-compatible monitor, recorder, or streaming device. This feature is perfect for broadcasting live motorsport events on TV or social media and provides instant feedback for race teams.

• Set Up From Your Phone: Use the accompanying VBOX Video app on Android or iOS devices for precise tuning of camera orientation, field of view, and live camera preview, all from the driver's seat.

• Customisable Graphics: Real-time, high-definition graphics overlays offer extensive customization options for dashboard and gauge layouts. Several default scenes are available, but you can also create your own to suit your specific needs.

• Auto-Track Map: The internal 25 Hz multi-constellation GNSS receiver recognizes the racetrack you are driving and automatically configures the track map and lap timing.

• No data loss: Speed-triggered automatic recording, a configurable pre-record buffer of up to 30 seconds, and vehicle power ensure that you capture absolutely all the race action.


For more information, please visit the VBOX Motorsport website.

Package Contents

You can choose between three package options.

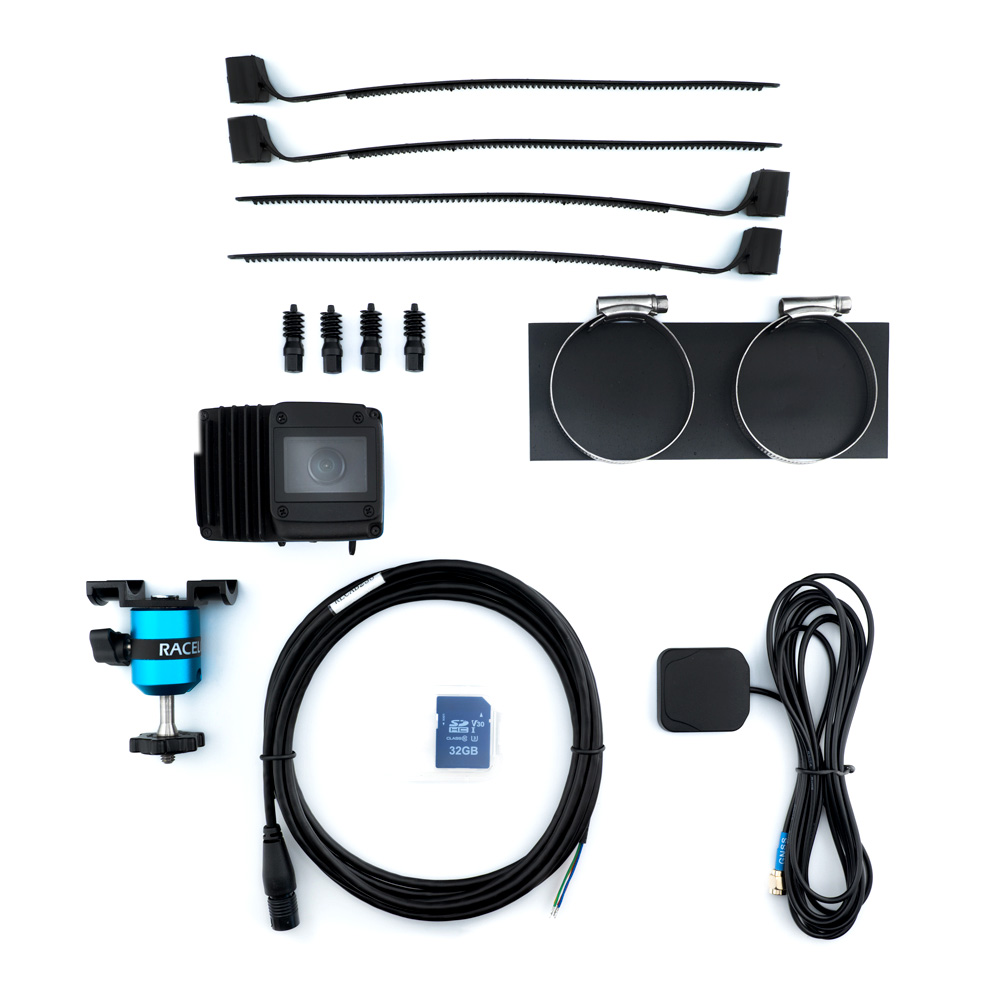

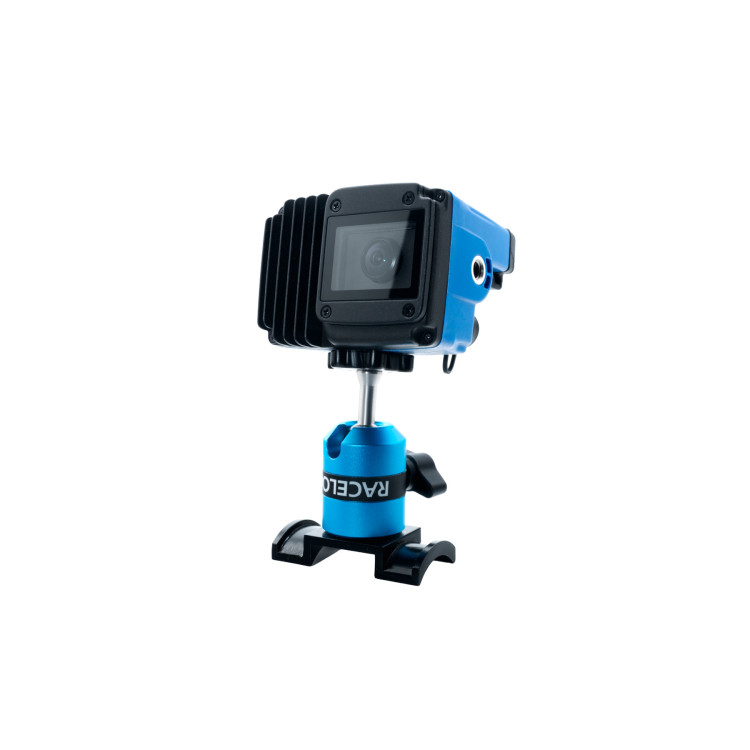

Option 1 (RLVBHD1) HD1 unit Un-terminated in-car power & CAN cable GNSS Antenna 32 GB SD card Roll cage mount

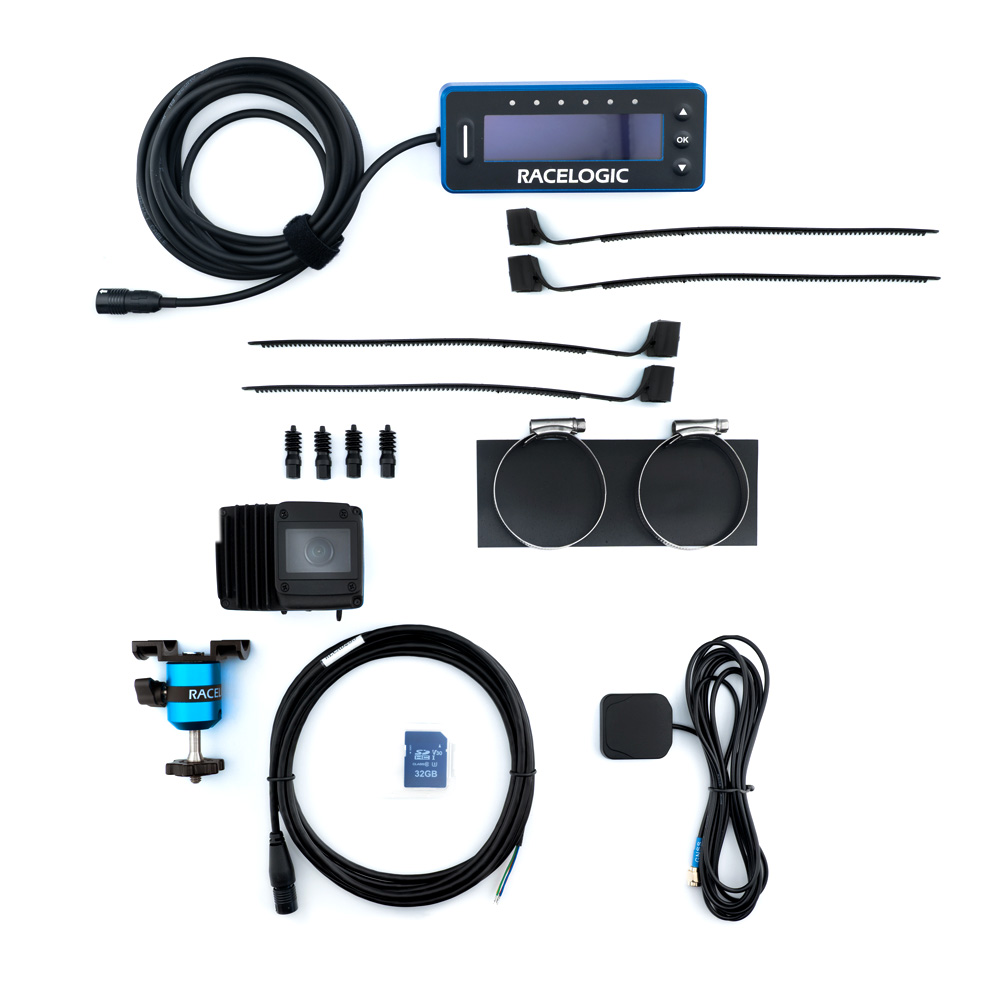

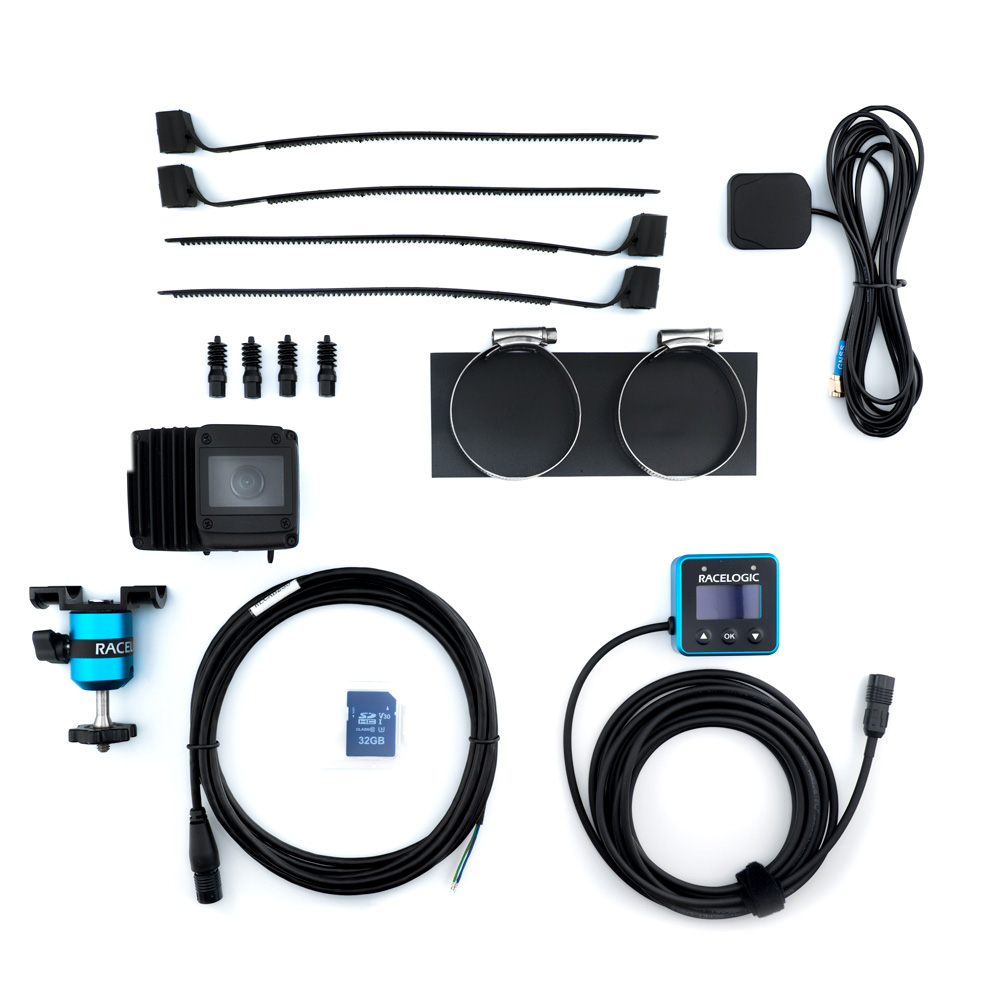

Option 2 (RLVBHD1/D) Contents of Option 1 OLED Display	Option 3 (RLVBHD1/DM) Contents of Option 1 Mini OLED Display
